Simarine Quadro Shunt
Additional Details
Add additional details about the product here.
Description

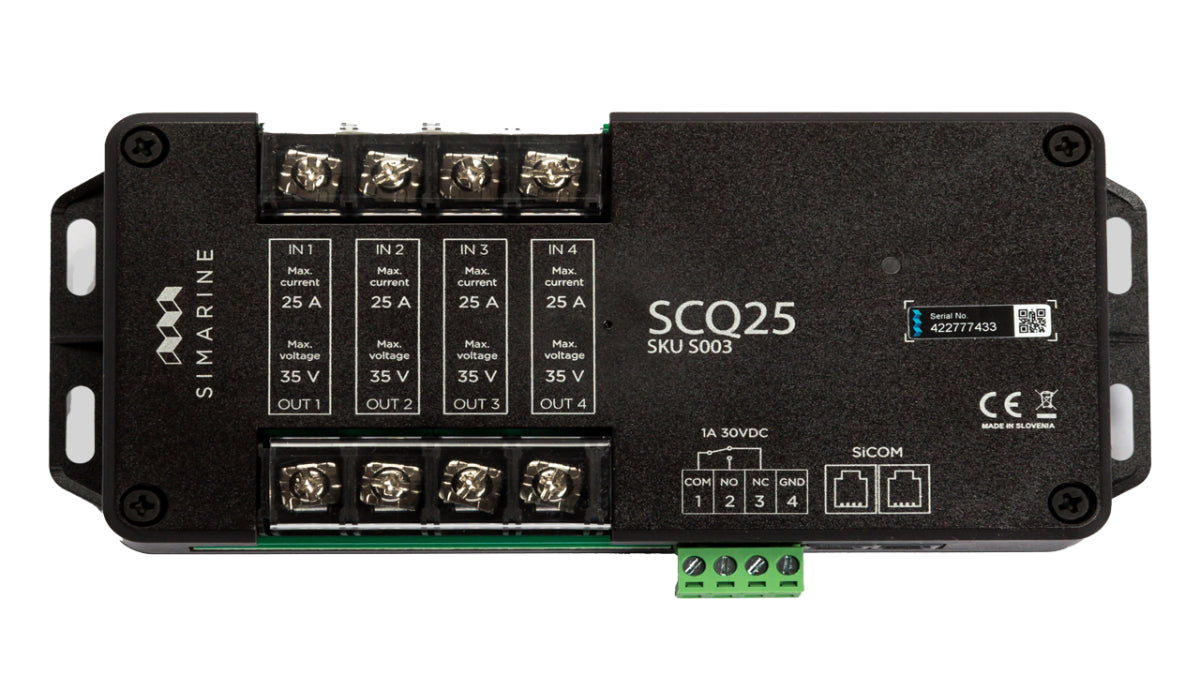

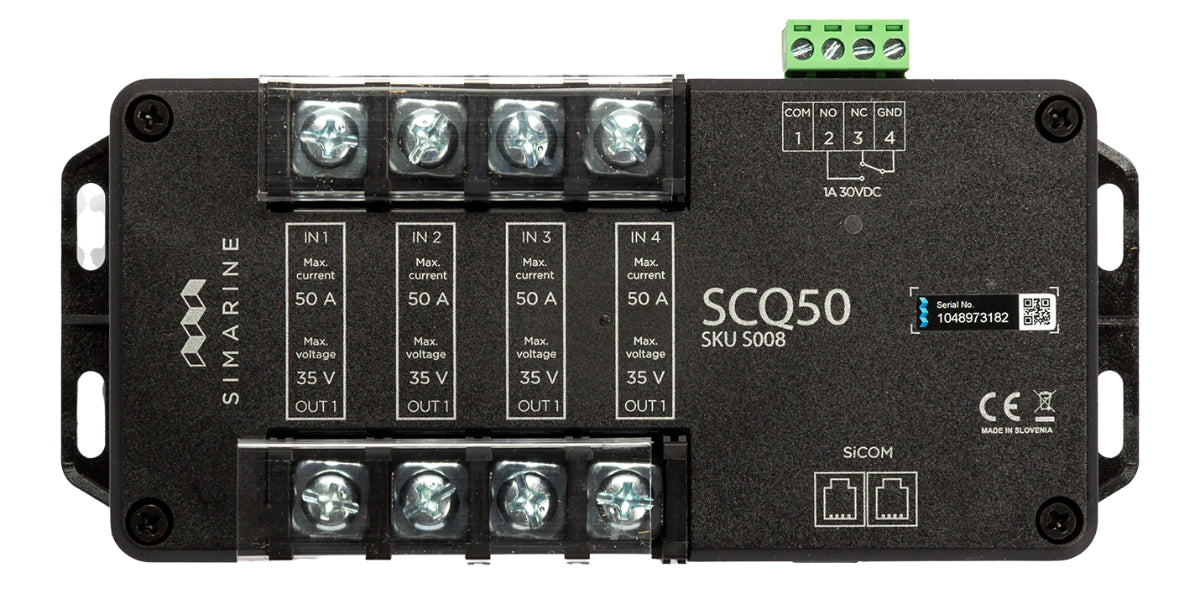

Simarine SCQ25, SCQ25T & SCQ50
The Simarine SCQ series adds multi-channel current monitoring to a Simarine system. These modules connect over SiCOM and are used when you want to monitor multiple individual loads or charging sources.
The SCQ25 and SCQ50 are 4-channel digital shunt modules, while the SCQ25T adds tank and temperature input capability for systems that need both current monitoring and sensor integration in one module.
Simarine products are built on a modular SiCOM architecture, allowing the system to be expanded with additional compatible modules as needed. These modules work with Simarine displays such as the PICO and VIA. Installation is simple through the SiCOM cable system with no termination required, and modules can be connected directly, through a splitter, or daisy-chained depending on the installation.
For systems above 35V, shunts must be installed on the negative side. 48V systems also require the correct high-voltage splitter configuration.
Key Features
| Feature | Details |
|---|---|
| System Fit | Works with Simarine displays such as the PICO and VIA over SiCOM |
| Current Channels | 4 integrated shunts |
| SCQ25 Capacity | 25A continuous per channel |
| SCQ25T Capacity | 25A continuous per channel |
| SCQ50 Capacity | 50A continuous per channel |
| Operating Voltage | 6–35V |
| Connectivity | SiCOM |
| Alarm Output | 1 alarm contact / relay output |
| SCQ25T Sensor Inputs | 4 resistance inputs and 3 voltage inputs |
| Use Case | Monitoring individual loads, charging sources, tanks, and temperatures |
Model Comparison
| Model | Current Channels | Continuous Current | Peak Current | Additional Inputs |
|---|---|---|---|---|
| SCQ25 | 4 | 25A per channel | 35A per channel (<1 min) | None |
| SCQ25T | 4 | 25A per channel | 35A per channel (<1 min) | 4 resistance + 3 voltage inputs |
| SCQ50 | 4 | 50A per channel | 60A per channel (<1 min) | None |

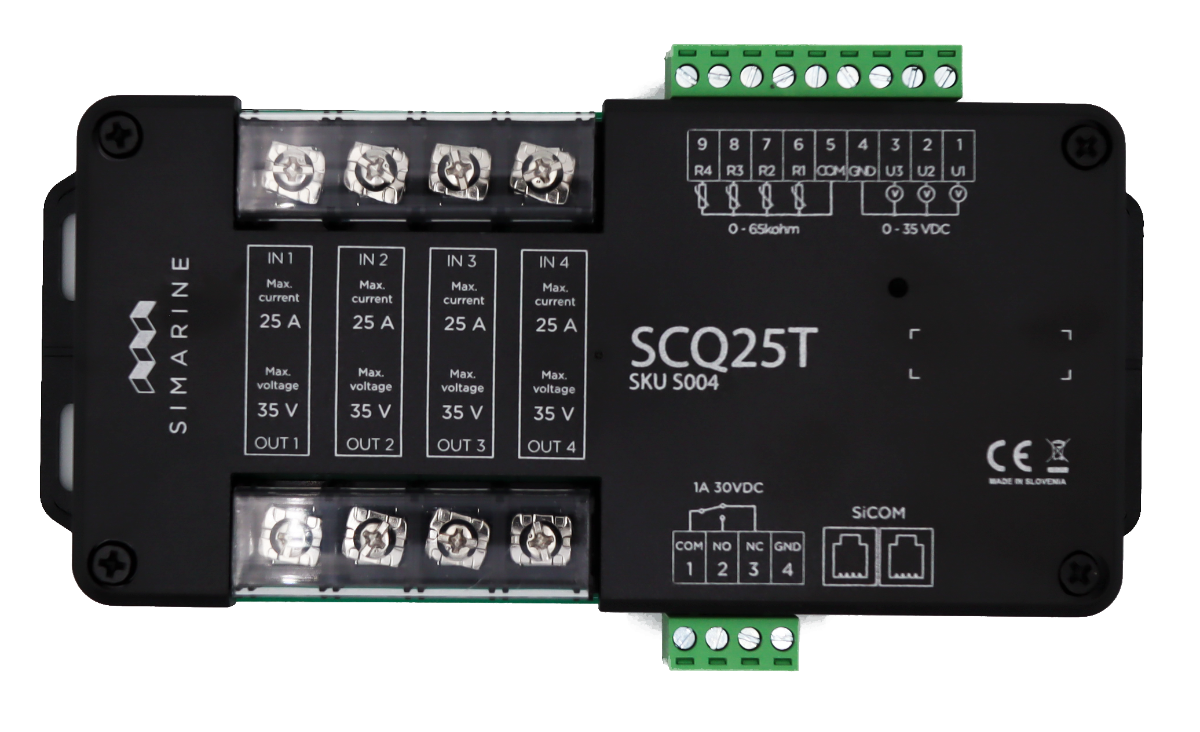

SCQ25T Tank and Temperature Capability
| Feature | Details |
|---|---|
| Resistance Inputs | 4 |
| Voltage Inputs | 3 |
| Resistance Range | 0–65 kOhm |
| Voltage Input Range | 0–35V |
| Temperature Sensors | Up to 4 |
| Tank Level Sensors | Up to 7 |
Datasheet
For full installation details, wiring information, and technical specifications, view the SCQ25 & SCQ50 manual and the SCQ25T manual.
