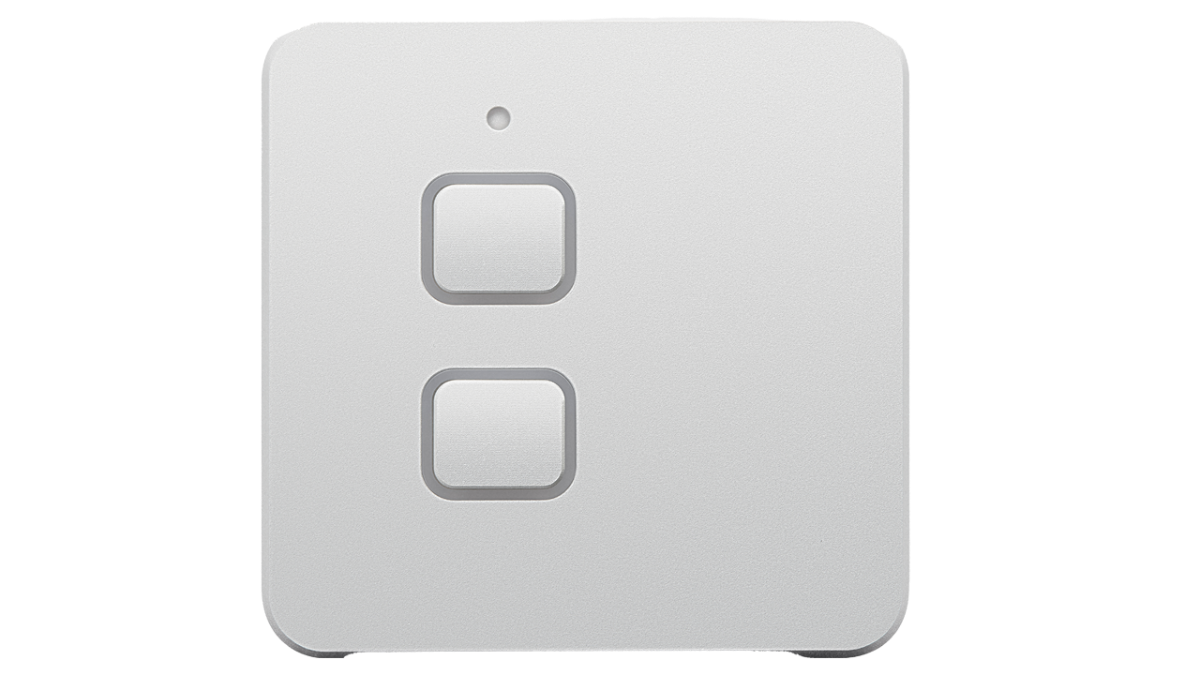

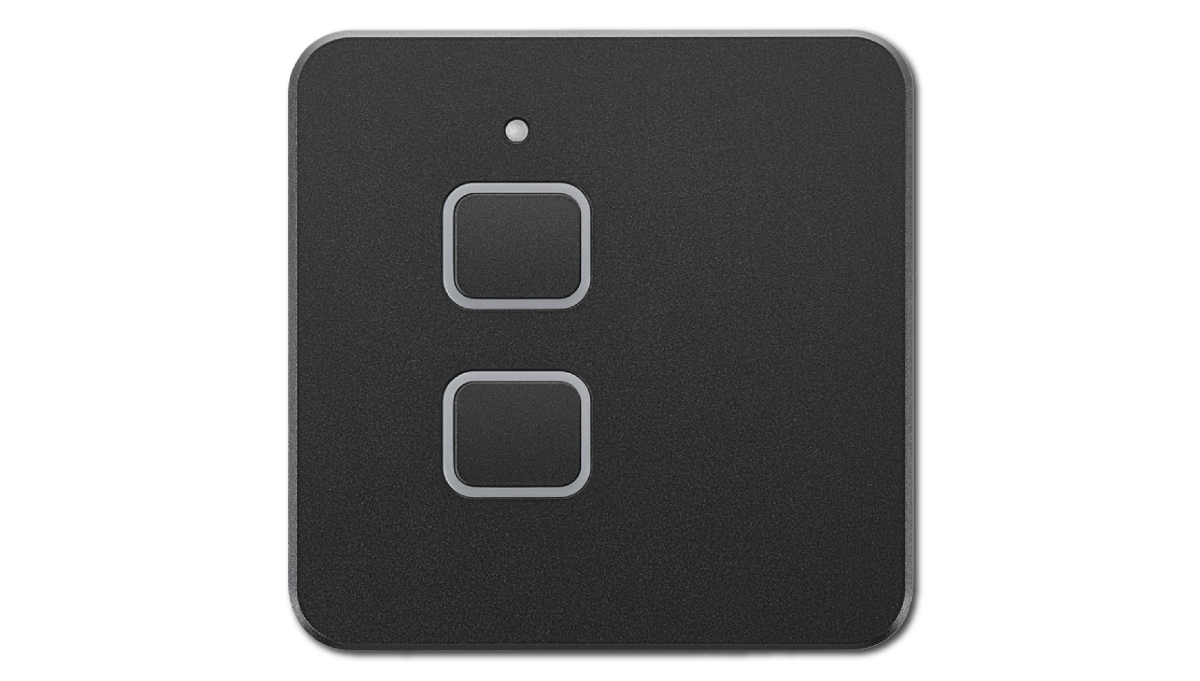

Simarine Nereide Light Switch with Dimmer
Additional Details
Add additional details about the product here.
Description
Simarine Nereide Light Switch with Dimmer
The Simarine Nereide is a double light switch with integrated dimming, designed to control two separate channels from one switch. It works well for LED lighting and other DC devices within its rated load.
When used in a Simarine SiCOM system, additional switches can be linked over SiCOM cable for multiway control from different locations without more complicated switching wiring. Switches can be connected in a daisy chain, allowing the same lighting circuits to be controlled from multiple switch locations while still keeping local on/off and dimming control at each switch.
Key Features
| Feature | Details |
|---|---|
| Function | Double switch with integrated dimmers |
| Outputs | 2 independent channels |
| Control | Short press for on/off, long press for dimming |
| Load Rating | 5A per output |
| Parallel Output Capability | Up to 10A when 2 channels are connected in parallel |
| Operating Voltage | 0–16V DC |
| Default Dimming Mode | 12V, 400Hz PWM |
| System Fit | Can be used standalone or with SiCOM multiway switching |
| Connectivity | 2 SiCOM ports |
| Dimensions | 60 x 60 x 42 mm |
Modes of Operation
| Mode | Details |
|---|---|
| PWM Mode | Used for dimming 12V LED lighting |
| ON/OFF Mode | Switches output voltage on or off |
| Push Button Mode | Selectable through setup procedure |
Datasheet
For full installation details, wiring information, and technical specifications, view the Nereide Light Switch with Dimmer manual.
