Simarine SN01 NMEA 2000 Gateway
Brand / Manufacturer: Simarine
Manufacturer warranty: 3 years.
Description

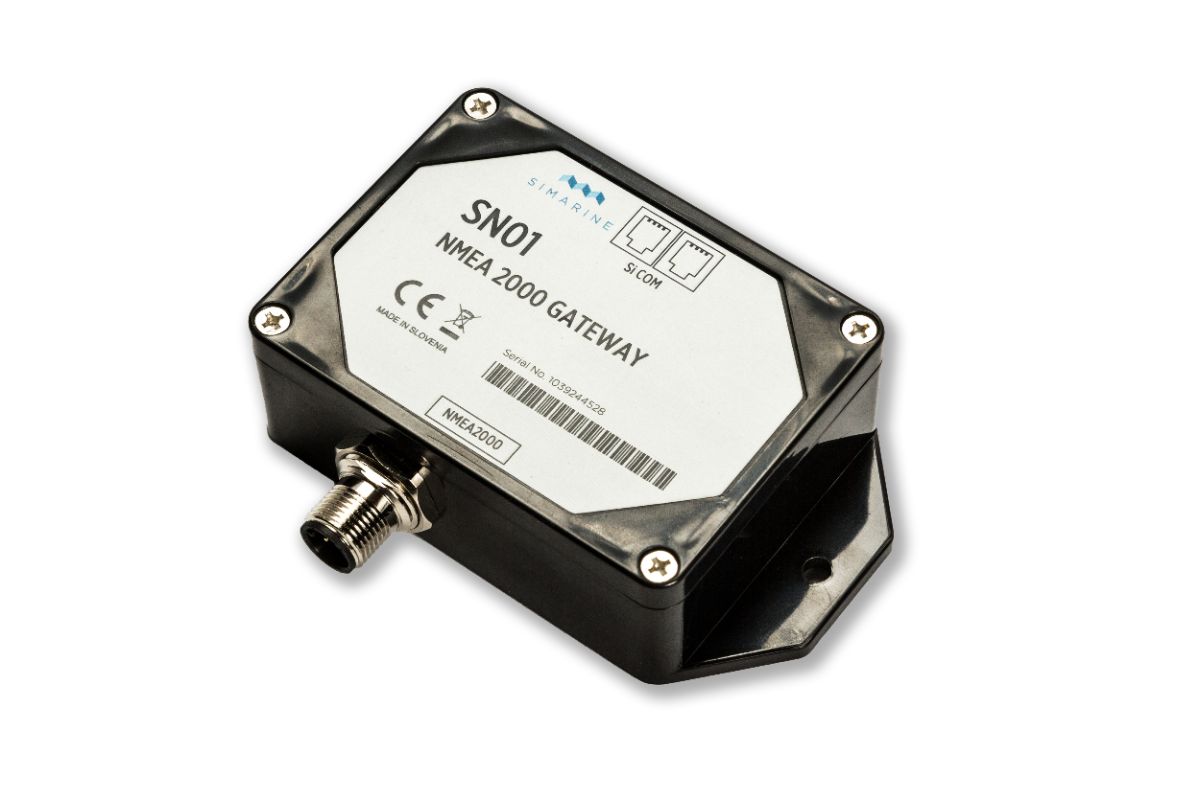

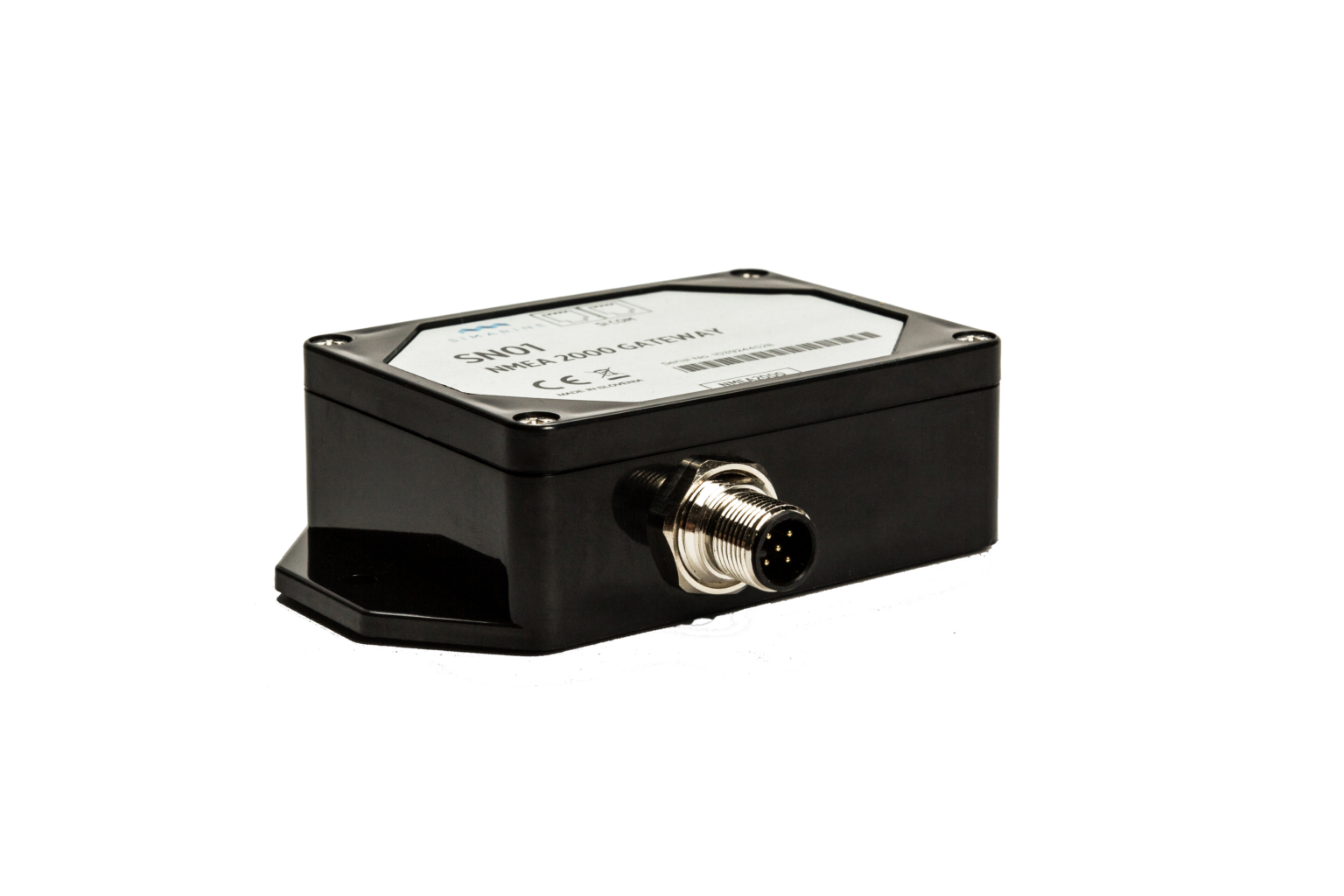

Simarine SN01 N2K Gateway
The Simarine SN01 is a gateway module that connects a Simarine PICO system to an NMEA 2000 backbone. It is used when you want supported system data from your Simarine setup transmitted onto an N2K network.
It fits into the system between your Simarine display and the NMEA 2000 backbone, using SiCOM on the Simarine side and a dedicated N2K port on the network side.
Key Features
| Feature | Details |
|---|---|
| Function | Connects Simarine PICO to an NMEA 2000 backbone |
| System Fit | Works with the Simarine PICO over SiCOM |
| Network Side | 1 N2K backbone connection |
| SiCOM Ports | 2 |
| Supported Data | Battery, fluid level, attitude, environmental, pressure, and related system data |
| Operating Voltage | 6–35V |
| Power Consumption | 0.6 mA at 12V |
| Dimensions | 111.80 x 77.52 x 32.11 mm |
| Connectivity | SiCOM and NMEA 2000 |
Datasheet
For full installation details, supported PGNs, and technical specifications, view the SN01 N2K Gateway manual.
Build Your Simarine System
This module connects to a compatible Simarine display. View the Simarine PICO Battery & System Monitor or compare the complete Simarine product line.
