Simarine ST107 Digital Tank Module
Additional Details
Add additional details about the product here.
Description

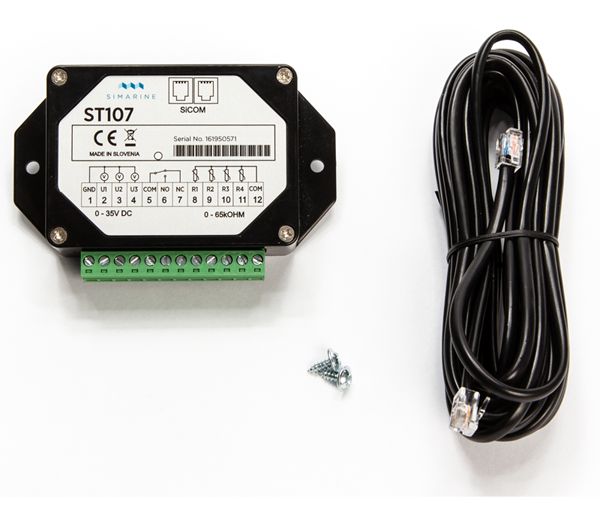

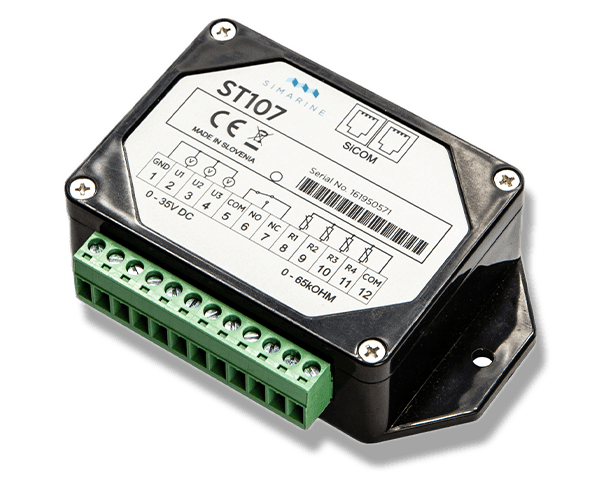

Simarine ST107 Tank Module
The Simarine ST107 is a digital tank module used within a Simarine system for monitoring liquid levels, temperature sensors, and voltage inputs. It connects over SiCOM and works with compatible Simarine displays such as the PICO and VIA.
Its main purpose is tank monitoring, but it also works well for temperature and voltage-based inputs in systems that need additional sensor expansion.
Simarine products are built on a modular SiCOM architecture, allowing the system to be expanded with additional compatible modules as needed. Installation is simple through the SiCOM cable system with no termination required, and modules can be connected directly, through a splitter, or daisy-chained depending on the installation.
Key Features
| Feature | Details |
|---|---|
| Function | Tank level, temperature, and voltage monitoring |
| System Fit | Works with compatible Simarine displays such as the PICO and VIA over SiCOM |
| Resistance Inputs | 4 |
| Resistance Range | 0 ohm – 65 kohm |
| Voltage Inputs | 3 |
| Voltage Range | 0–75V |
| Operating Voltage | 6–35V |
| Alarm Output | 1 configurable alarm contact |
| Connectivity | SiCOM |
| Dimensions | 112 x 72 x 31 mm |
Datasheet
For full installation details, wiring information, and technical specifications, view the ST107 manual.
