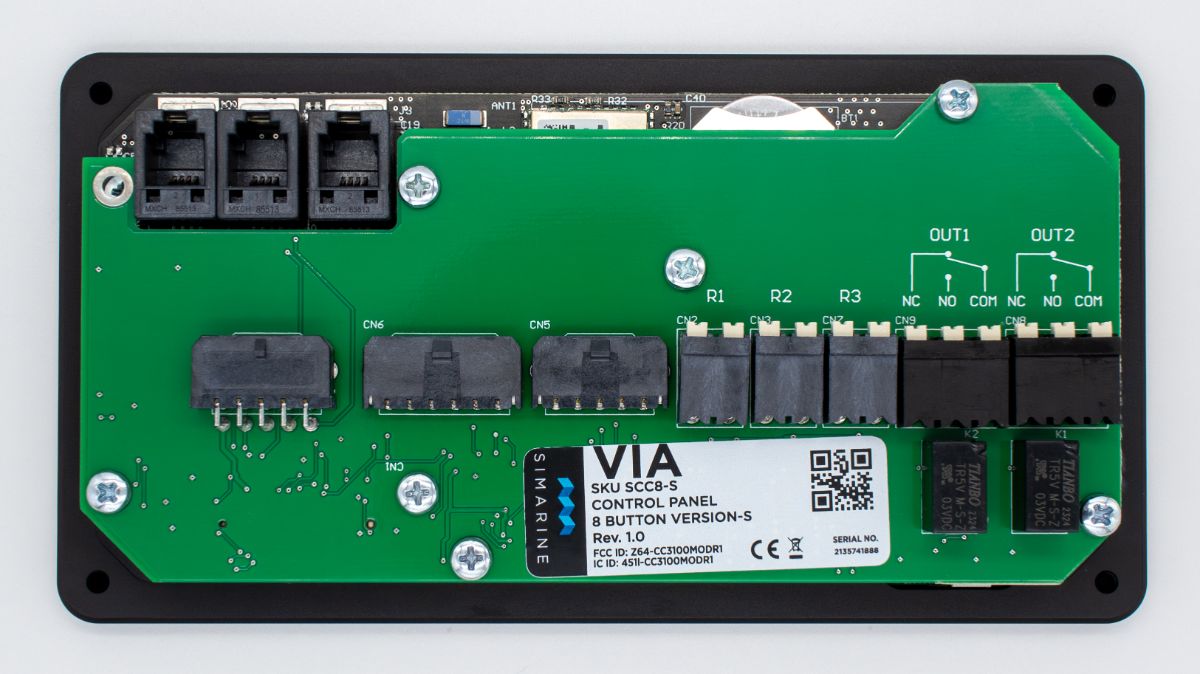

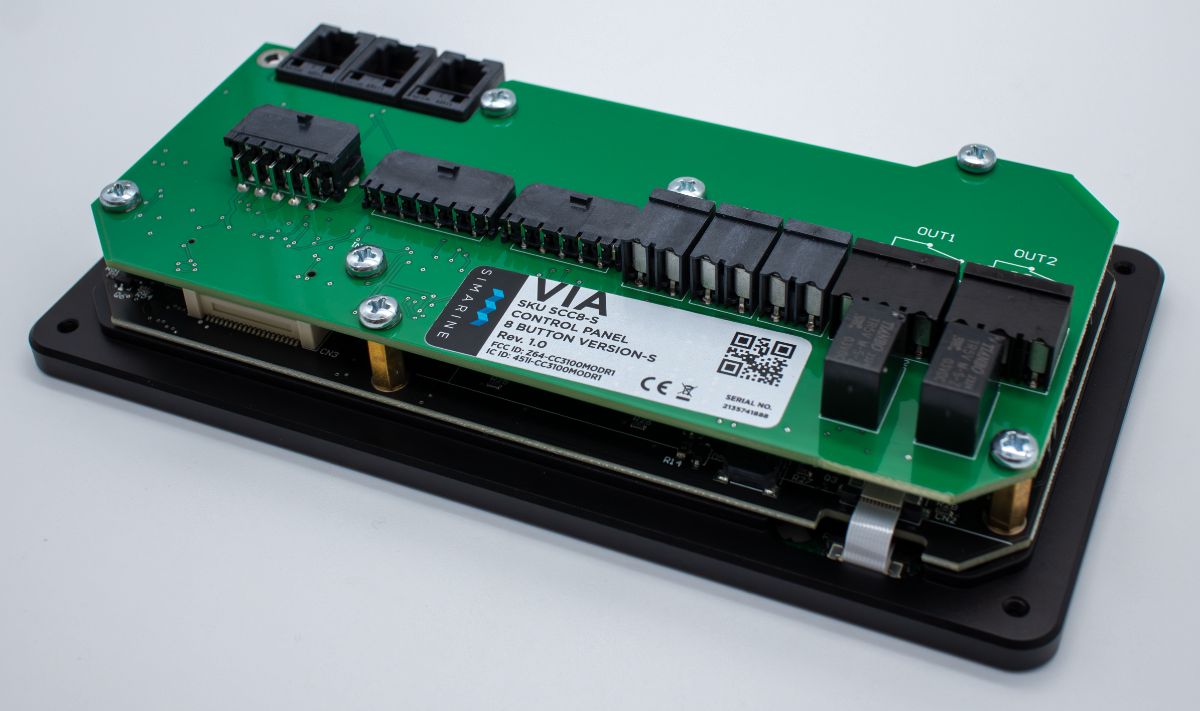

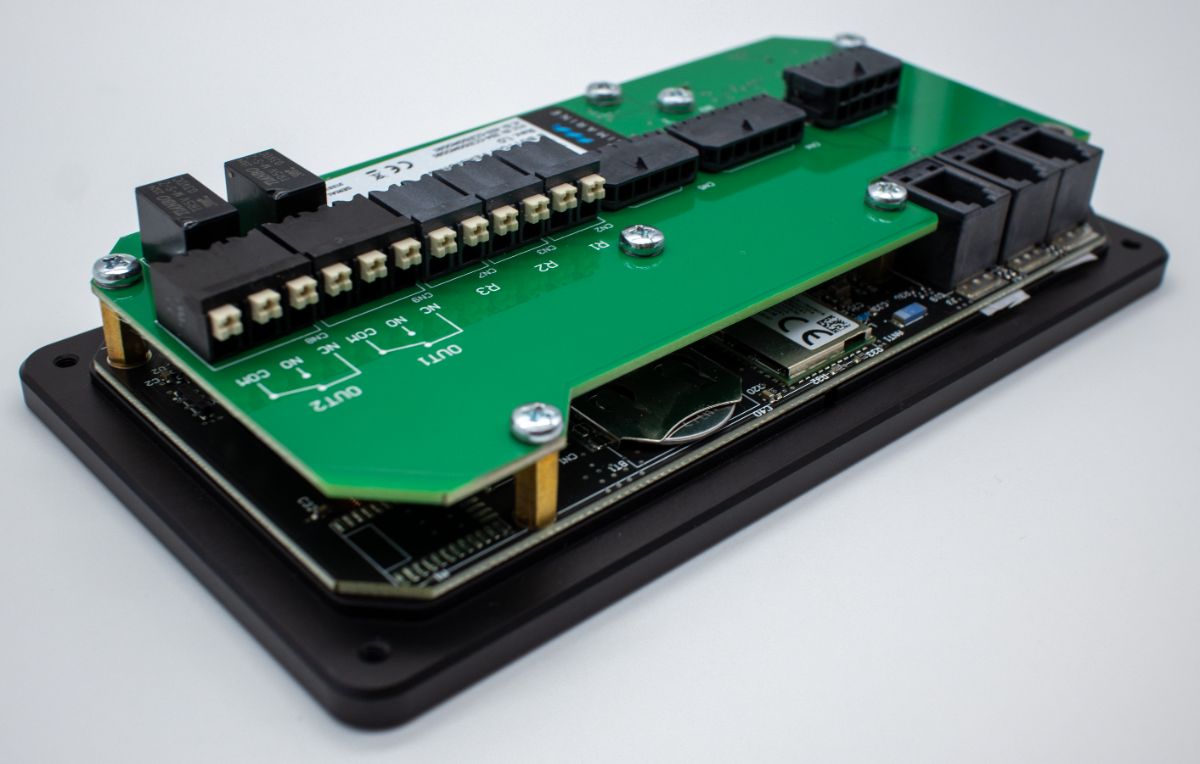

Simarine VIA 8-Button Control Panel
Brand / Manufacturer: Simarine
Manufacturer warranty: 3 years.
Description
Simarine VIA Control - 8 Buttons

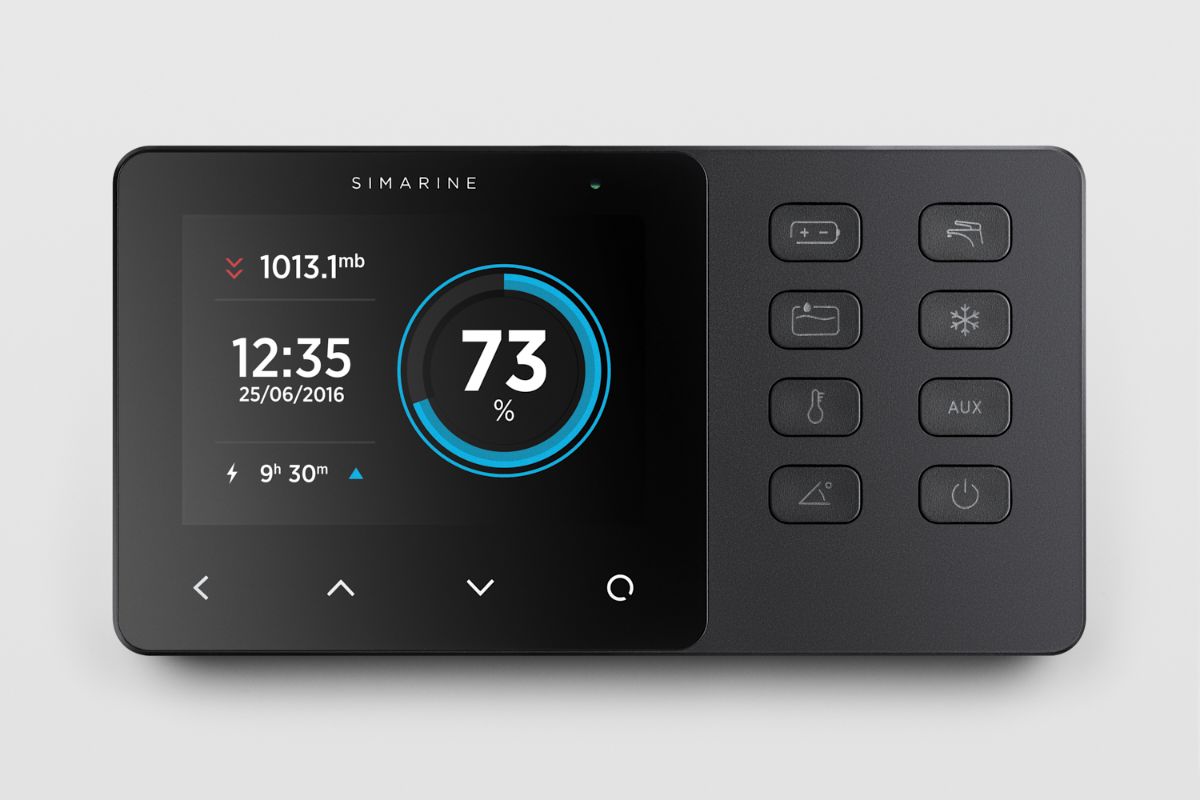

The Simarine VIA is a control and display interface for camper van, RV, marine, caravan, and off-grid systems. It is designed to work with compatible Simarine modules to show battery, tank, temperature, solar, current, and inclinometer data in one clean, easy-to-read screen.
Simarine products are built on a modular SiCOM architecture, allowing the system to be expanded with additional compatible modules as needed. These modules work with Simarine displays such as the PICO and VIA. Installation is simple through the SiCOM cable system with no termination required, and modules can be connected directly, through a splitter, or daisy-chained depending on the installation.
The VIA itself is the control and display interface. Actual system monitoring requires external Simarine modules depending on your use case, and switching control requires compatible SPDU units such as the SPDU-52 or SPDU-66.
For systems above 35V, shunts must be installed on the negative side. 48V systems also require the correct high-voltage splitter configuration.
Key Features
| Feature | Details |
|---|---|
| Function | Control and display interface for compatible Simarine modules and SPDU units |
| Display | 3.5" high-resolution IPS display |
| Screen Protection | Gorilla Glass with anti-reflective coating |

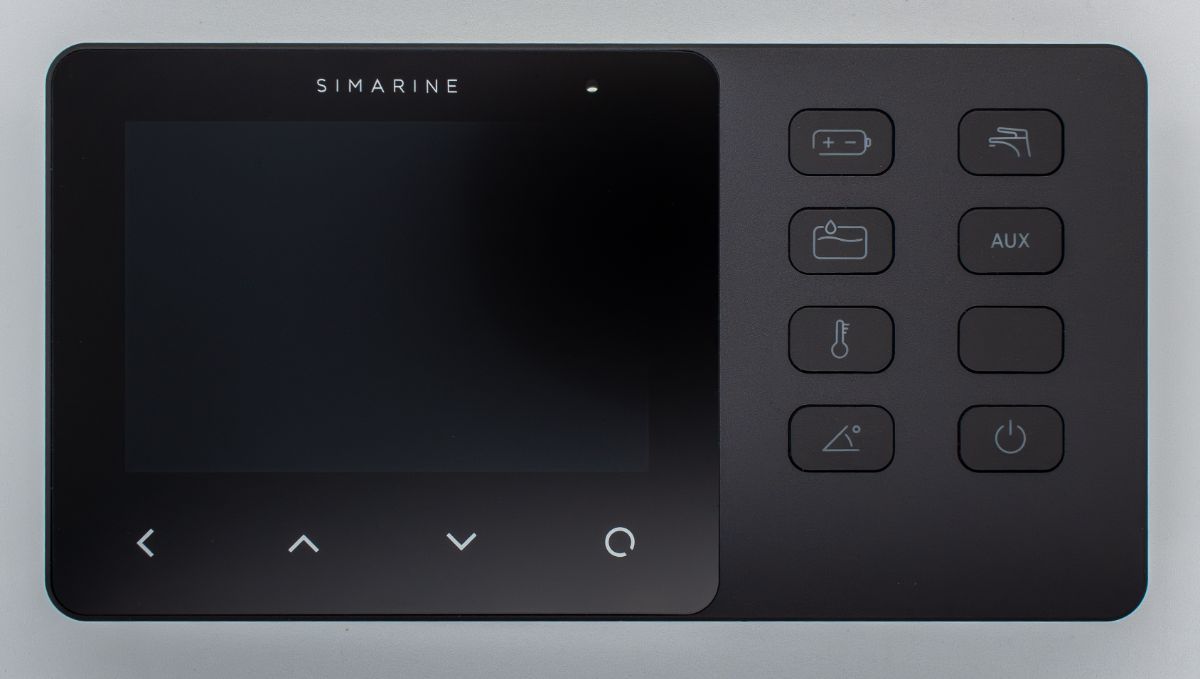

| Controls | 8 control buttons |
| Wireless | WiFi integrated |
| Battery Monitoring | Up to 6 batteries |
| Tank Monitoring | Up to 14 tanks |
| Temperature Monitoring | Up to 10 temperature sensors |
| Current Sensor Support | Up to 24 shunts |
| Inclinometer Support | Up to 2 inclinometers |
Compatible Modules
| Module | Description |
|---|---|
| SC303 | 300A digital shunt |
| SC503 | 500A digital shunt |
| SDI01 | Digital inclinometer |
| SCQ25 | 4 x 25A quadro digital shunt module |
| SCQ50 | 4 x 50A quadro digital shunt module |
| SCQ25T | Quadro digital shunt and analog input module |
| ST107 | Analog input interface module |
| SPDU-52 | Power distribution unit for switching control |
| SPDU-66 | Power distribution unit for switching control |
Technical Highlights
| Specification | Details |
|---|---|
| Operating Voltage | 6–22V |
| Operating Temperature | -20°C to +70°C |
| WiFi Band | 2.4GHz |
| Dimensions | 157.10 x 82.10 x 5.60 mm |
Datasheet
For full installation details, setup information, and technical specifications, view the VIA Control manual.
Build Your Simarine System
Pair VIA with the SPDU-52 Power Distribution Unit for compatible switching and distribution, then add Simarine monitoring modules as required.
