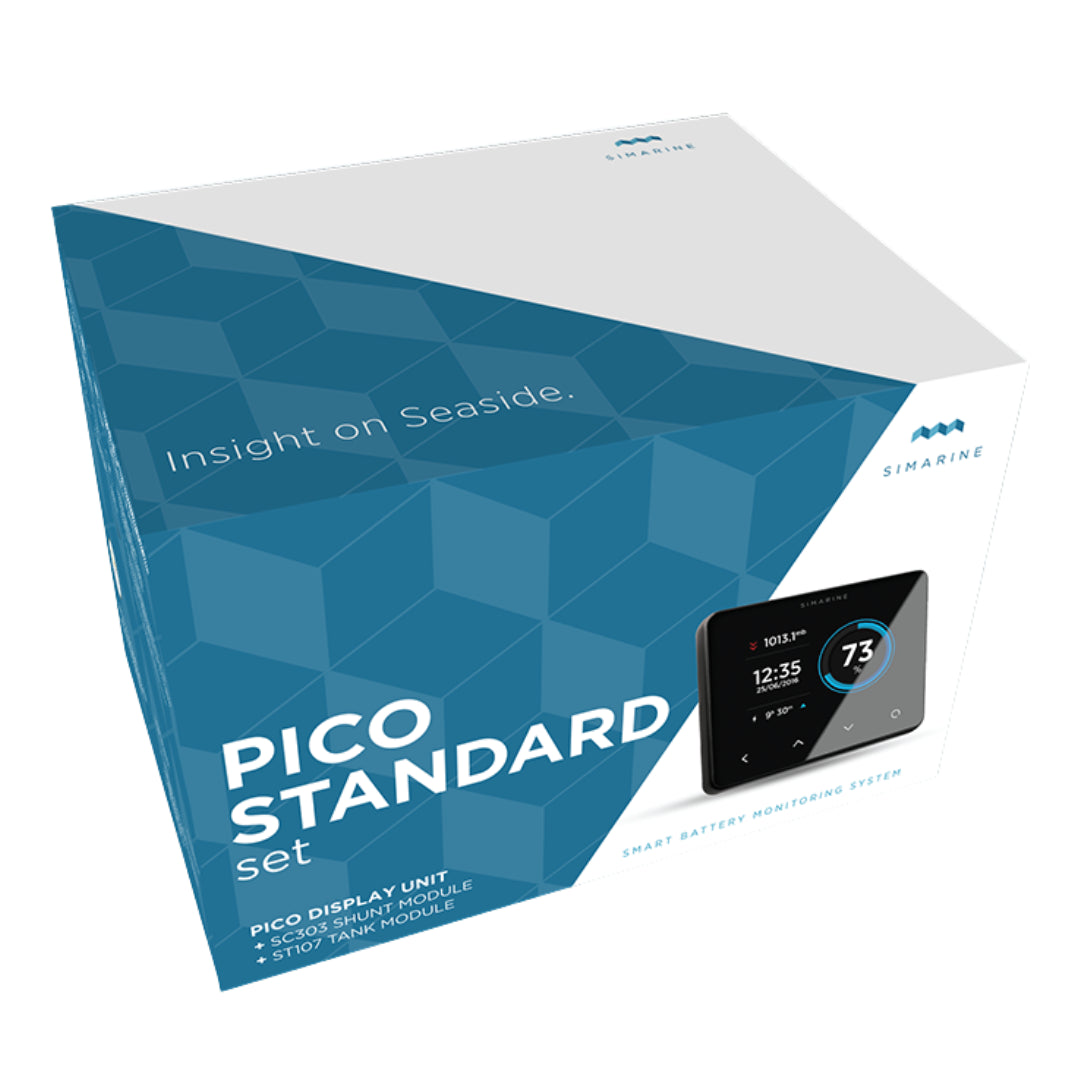

Simarine PICO Standard Package

The Simarine PICO Standard Package is a complete battery and tank monitoring solution for yachts, caravans, and off-grid systems that need more input capacity in one package.

The PICO itself is the display and processing unit, while actual measurements are handled through the included SC303 shunt module and ST107 tank module. Together, they provide monitoring for one main battery bank with current, voltage, and temperature tracking, along with 4 additional flexible voltage inputs and up to 6 tank level or temperature inputs depending on system configuration.

Those additional voltage inputs are not limited to battery monitoring only. Depending on the setup, they can be used for additional battery voltage monitoring or for voltage-type tank sensors. Barograph function is included, and a temperature sensor with JST connector is also included. Additional temperature sensors and tank level sensors are sold separately.

Simarine products are built on a modular SiCOM architecture, allowing the system to be expanded with additional compatible modules as needed. Installation is simple through the SiCOM cable system with no termination required, and modules can be connected directly, through a splitter, or daisy-chained depending on the installation.

For systems above 35V, shunts must be installed on the negative side. 48V-only and other higher-voltage systems require the correct Simarine high-voltage splitter configuration.

Key Features

Package Includes

Monitoring Options
